Overview

This command is under development.

The GeoMap command processes a single "GeoMap" within a GeoMap project, which describes a spatial map. This command is used to develop and test Java map processing code and integrate time series data visualizations with maps.

See the GeoMapProject command documentation for background on a map project.

See the Open Water Foundation GeoProcessor documentation for details about the JSON map project file.

One or more processing actions can be executed by this command, independently or combined:

• create a new map:
  • specify data using the New and other tabs
  • copy an existing map (future feature)
• add a layer using the Layer tab (provides spatial data, and can be used by one or more layer views)
• add a layer view group using the Layer View Group tab (associates a layer with a layer view)
• add a layer view to a layer view group using the LayerView and Layer View (Symbol) tab (defines how a layer is visualized)
• write the project to an output JSON file

Command Editor

The command is available in the following TSTool menu:

• Commands / Spatial Data Processing

The following dialog is used to edit the command and illustrates the command syntax.

The GeoMap command uses sub-commands as specified by the MapCommand parameter to perform tasks, with tabs provided to organize parameters for each sub-command. Parameters in one or more tabs are specified as needed.

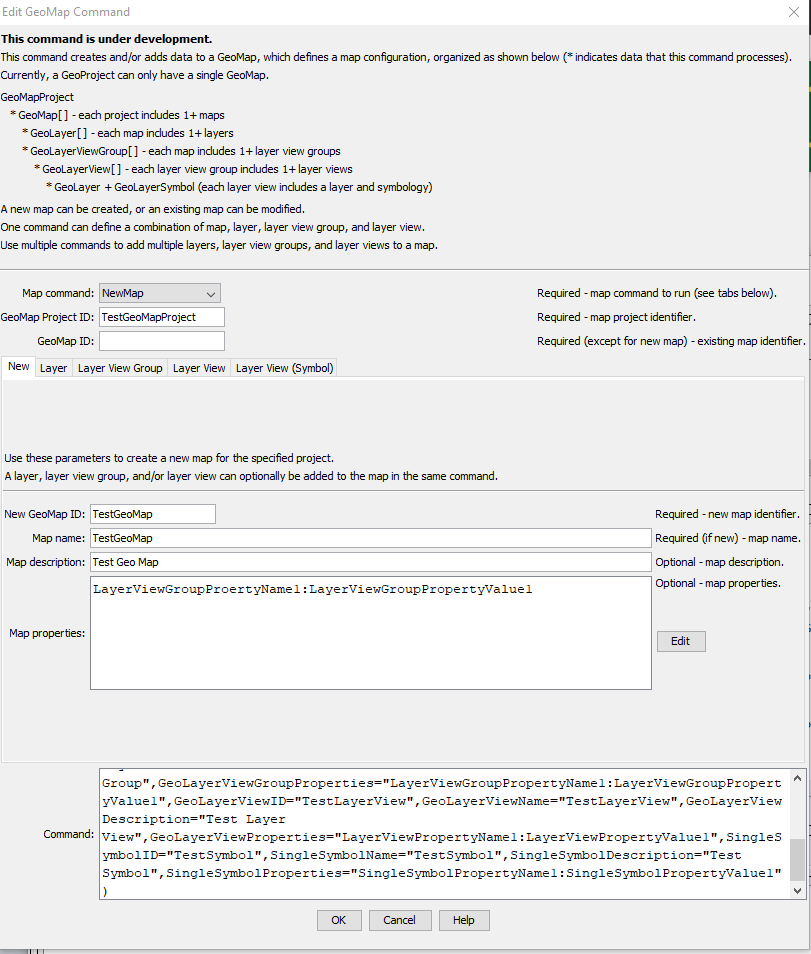

GeoMap Command Editor for New Parameters (see full-size image)

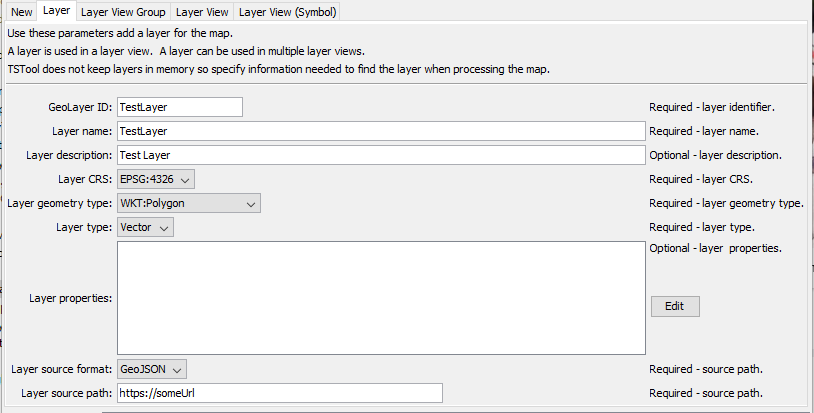

GeoMap Command Editor for Layer Parameters (see full-size image)

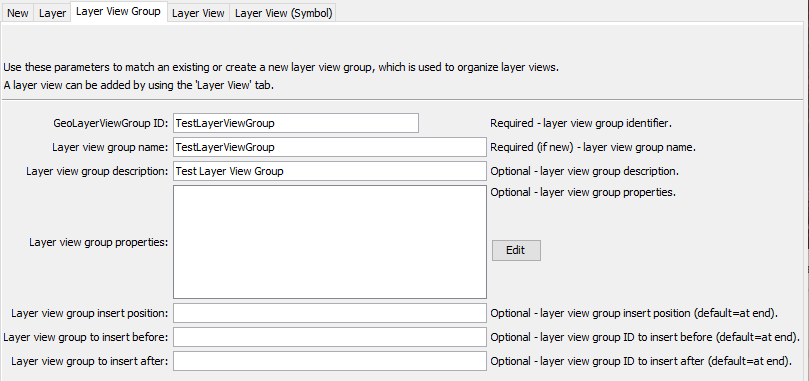

GeoMap Command Editor for Layer View Group Parameters (see full-size image)

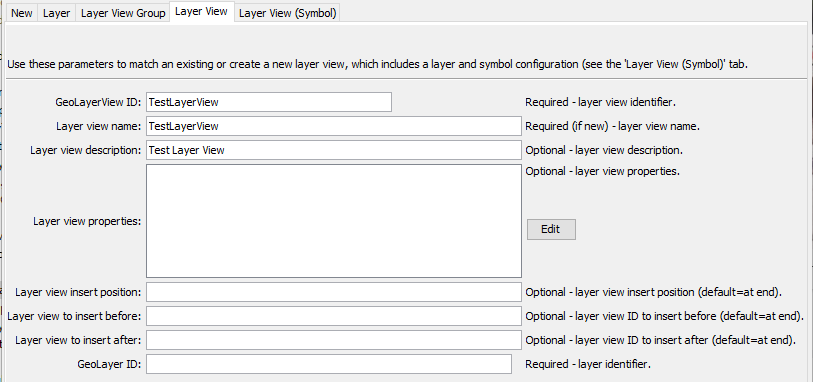

GeoMap Command Editor for Layer View Parameters (see full-size image)

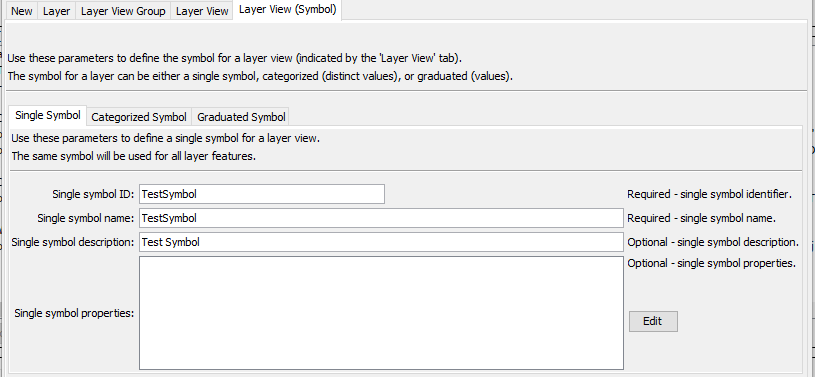

GeoMap Command Editor for Single Symbol Parameters (see full-size image)

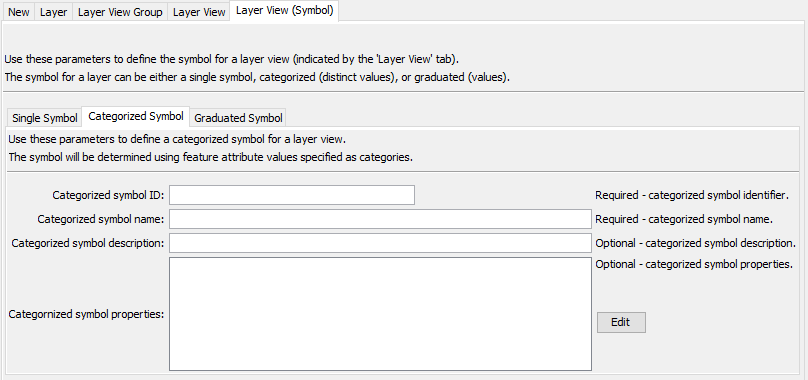

GeoMap Command Editor for Categorized Symbol Parameters (see full-size image)

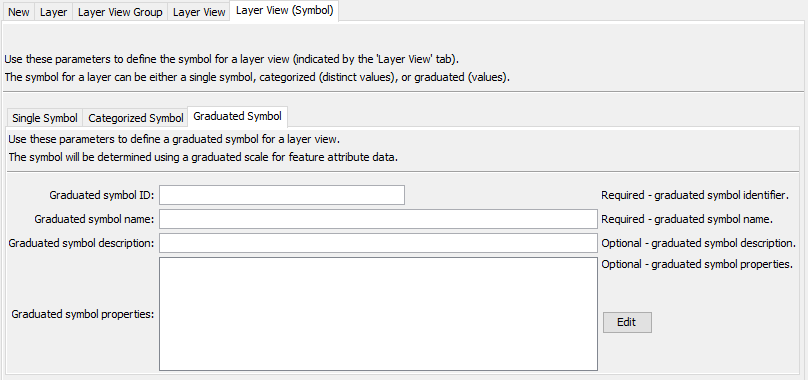

GeoMap Command Editor for Graduated Symbol Parameters (see full-size image)

Command Syntax

The command syntax is as follows:

GeoMap(Parameter="Value",...)

Command Parameters

Tab	Parameter	Description	Default
All	MapCommand	GeoMap command to run: NewMap - create a new map Layer - add/edit a layer LayerViewGroup - add/edit a layer view group LayerView - add/edit a layer view Layer View (Symbol) - add/edit a layer view symbol See separate tabs for the related command parameters.	None - must be specified.
	GeoMapProjectID	Identifier for the GeoMap project, to identify the existing project associated with the GeoMap. Can be specified using processor ${Property}.	None - must be specified.
	GeoMapID	Identifier for the GeoMap within a project, to identify the existing map associated with the GeoMap. Can be specified using processor ${Property}.	Must be specified if processing an existing map.
New	NewGeoMapID	New GeoMap identifier, used when creating a new map. Can be specified using processor ${Property}.
	GeoMapName	Name for the map. Can be specified using processor ${Property}.
	GeoMapDescription	Description for the map. Can be specified using processor ${Property}.
	GeoMapProperties	Map properties using the format Property1:Value1,Property2:Value2,.... Can be specified using processor ${Property}.
Layer	GeoLayerID	Layer identifier. Can be specified using processor ${Property}.
	GeoLayerName	Name for the layer. Can be specified using processor ${Property}.
	GeoLayerDescription	Description for the layer. Can be specified using processor ${Property}.
	GeoLayerProperties	Layer properties using the format Property1:Value1,Property2:Value2,.... Can be specified using processor ${Property}.
	GeoLayerCrs	Layer coordinate reference system (CRS) using syntax EPSG:xxxx, where xxxx is the CRS number. See Spatial reference system on Wikipedia. Can be specified using processor ${Property}.
	GeoLayerGeometryType	Layer geometry type as: Raster WKT:GeometryType, where GeometryType matches a Well Known Text geometry type	None - must be specified.
	GeoLayerType	Type type of the layer: Raster Vector	None - must be specified.
	GeoLayerSourceFormat	The format of the layer: GeoJSON - for vector data WMTS - for web mapping tile service for a background layer	None - must be specified.
	GeoLayerSourcePath	The path to the layer's data: file path URL	None - must be specified.
Layer View Group	GeoLayerViewGroupID	Layer view group identifier. Can be specified using processor ${Property}.
	GeoLayerViewGroupName	Name for the layer view group. Can be specified using processor ${Property}.
	GeoLayerViewGroupDescription	Description for the layer view group. Can be specified using processor ${Property}.
	GeoLayerViewGroupProperties	Layer view group properties using the format Property1:Value1,Property2:Value2,.... Can be specified using processor ${Property}.
	GeoLayerViewGroupInsertPosition	Position (1+) to insert the layer view group. Can be specified using processor ${Property}.
	GeoLayerViewGroupInsertBefore	Layer view group identifier to insert before. Can be specified using processor ${Property}.
	GeoLayerViewGroupInsertAfter	Layer view group identifier to insert after. Can be specified using processor ${Property}.
Layer View	GeoLayerViewID	Layer view identifier. Can be specified using processor ${Property}.
	GeoLayerViewName	Name for the layer view. Can be specified using processor ${Property}.
	GeoLayerViewDescription	Description for the layer view. Can be specified using processor ${Property}.
	GeoLayerViewProperties	Layer view properties using the format Property1:Value1,Property2:Value2,.... Can be specified using processor ${Property}.
	GeoLayerViewInsertPosition	Position (1+) to insert the layer group. Can be specified using processor ${Property}.
	GeoLayerViewInsertBefore	Layer view identifier to insert before. Can be specified using processor ${Property}.
	GeoLayerViewInsertAfter	Layer view identifier to insert after. Can be specified using processor ${Property}.
	GeoLayerViewGeoLayerID	Layer identifier to use for the view. Can be specified using processor ${Property}.

The Layver View (Symbol) tab includes tabs for the symbol to use for the layer view, as described in the following table, for the following symbol types:

• SingleSymbol - a single symbol is used for every feature in the layer, regardless of attribute value
• CategorizedSymbol - distinct or ranges for a feature attribute are used to determine the symbol
• GraduatedSymbol - a graduated symbol (e.g., color ramp) based on feature attribute value is used to determine the symbol

Layer View (Symbol) Command Parameters

Tab	Parameter	Description	Default
Single Symbol	SingleSymbolID	Identifier for the symbol.	None - must be specified.
	SingleSymbolName	Name for the symbol. Can be specified using processor ${Property}.
	SingleSymbolDescription	Description for the symbol. Can be specified using processor ${Property}.
	SingleSymbolProperties	Symbol properties using the format Property1:Value1,Property2:Value2,.... Can be specified using processor ${Property}.
Categorized Symbol	CategorizedSymbolID	Identifier for the symbol.	None - must be specified.
	CategorizedSymbolName	Name for the symbol. Can be specified using processor ${Property}.
	CategorizedSymbolDescription	Description for the symbol. Can be specified using processor ${Property}.
	CategorizedSymbolProperties	Symbol properties using the format Property1:Value1,Property2:Value2,.... Can be specified using processor ${Property}.
Graduated Symbol	GraduatedSymbolID	Identifier for the symbol.	None - must be specified.
	GraduatedSymbolName	Name for the symbol. Can be specified using processor ${Property}.
	GraduatedSymbolDescription	Description for the symbol. Can be specified using processor ${Property}.
	GraduatedSymbolProperties	Symbol properties using the format Property1:Value1,Property2:Value2,.... Can be specified using processor ${Property}.

Examples

See the automated tests.

Troubleshooting

See the main TSTool Troubleshooting documentation.
