TSTool / Command / SetTableValues

Overview

The SetTableValues command sets values in a table. It does so by:

  1. First match rows by filtering on column values (see ColumnFilters parameter). The default if no filters are specified is to match all rows.
  2. Set values in specified columns:
    1. If ColumnValues parameter is specified, set one or more column values.
    2. If Column and Value parameters are specified, set a single column's values. This form is used when the ColumnValues syntax is complicated, such as when a column containing array is modified.

This command can be used to set or override table values that were not included in the original data. See also the FormatTableString and ManipulateTableString commands.

Command Editor

The command is available in the following TSTool menu:

  • Commands(Table) / Manipulate Table Values

The following dialog is used to edit the command and illustrates the syntax of the command.

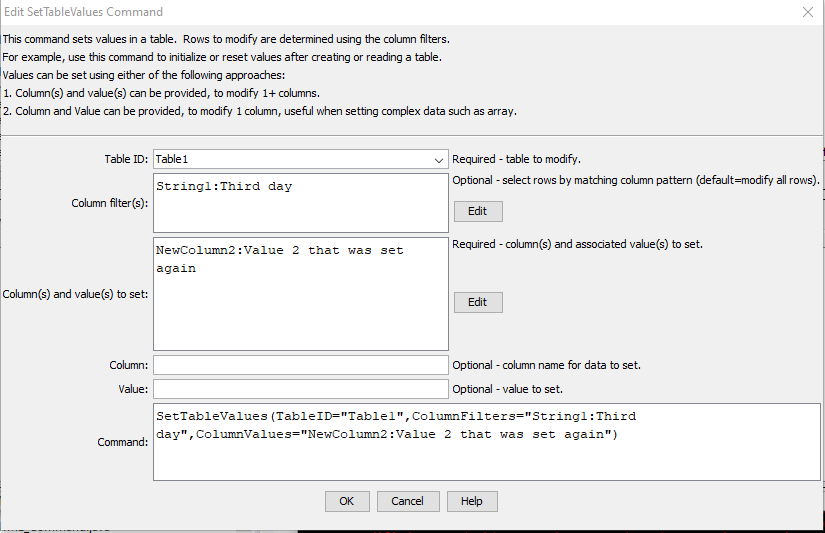

SetTableValues command editor

SetTableValues Command Editor (see full-size image)

Command Syntax

The command syntax is as follows:

SetTableValues(Parameter="Value",...)

Command Parameters

Parameter                           Description Default
TableID
required		 The identifier for the table being modified. Can be specified using ${Property} notation. None – must be specified.
ColumnFilters Filters that limit the number of rows being modified, using the syntax:
FilterColumn1:FilterPattern1, FilterColumn2:FilterPattern2
Patterns can use * to indicate wildcards for matches. Only string values can be checked (other data types are converted to strings for comparison). Comparisons are case-independent. All patterns must be matched in order to match the row. The parameter can be specified using ${Property} notation.		 Process all rows in the table.
ColumnValues
 The column names and corresponding values to set using syntax:
ColumnName1:Value1, ColumnName2:Value2
The column name and value parts can be specified using ${Property} notation.
Column
 The column name to set a single value, can use ${Property} notation. A corresponding Value must be provided.
Value
 The value to set, can use ${Property} notation. Array values can be set using notation [value1,value2,value3...].

Examples

See the automated tests.

Troubleshooting

See the main TSTool Troubleshooting documentation.
