TSTool / Command / CompareTimeSeries


Overview

The CompareTimeSeries command compares time series to determine data differences. This command is often used to test a process. Currently time series properties (e.g., name, units) are NOT compared – only data values are compared. It is designed to process many time series in bulk fashion. Time series to compare are determined by trying to match each available time series with another time series in the list (ignoring itself) using one of the following options for input:

  • Two lists of time series, for example the same set of time series from two different databases or model results. Typically the location identifiers and possibly data types will be the same in the two lists.
  • Compare two time series directly.
  • Compare time series from two ensembles.

Time series that are not matched are listed in output and the second time series is treated as completely missing.

Time series are compared value by value for each date/time in the analysis period, with the differences computed as the value from the second time series minus the value from the first time series. The values that are compared can be rounded based on a specified precision. If necessary, read each set of time series from files to ensure that final round off is consistent. The checks occur by comparing the difference to one or more specified tolerances. Differences and simple statistics are optionally printed to output files (see DifferenceFile and SummaryFile command parameters). Values that are different can optionally be indicated using the following:

  • set a character flag, for use with the graphing package
  • create a time series of the differences that can be visualized using graph or raster graph
  • generate a command warning if a difference is detected, or if no differences are detected
  • create a table record listing the difference, which can viewed or output with other commands
  • set a processor property with count of the number of time series that are different

Date/time in time series is handled as follows:

  • In order to compare time series, it is important that the date/times for data values align. Lack of alignment can result in differences. There is currently no command feature to accept date/time differences within a tolerance.
  • The date/time precision of the time series should be the same. For regular-interval time series, the interval base and date/time precision are the same (e.g., 5Min interval has a precision of minute). For irregular interval time series the time series interval may be irregular and the precision must be determined from the period date/times. TSTool is being updated over time to support irregular interval with base (e.g., "IrregDay") but this is not universal.
  • To help ensure alignment of time series, the following approach is taken:
    • Regular interval time series: Are compared as usual because the times should line up.
    • Irregular interval time series: If at least one of the two time series are irregular interval, the date/times for both time series are added to a sorted list, which is used to retrieve data from both time series. Any date/times that result in only one value will result in a difference.

See also the CompareFiles and CompareTables commands.

Command Editor

The command is available in the following TSTool menu:

  • Commands / Analyze Time Series
  • Commands / General - Test Processing

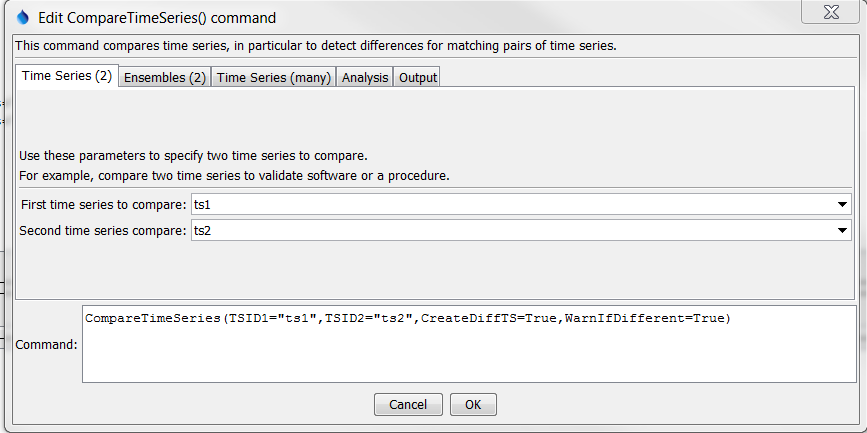

The following dialog is used to edit the command and illustrates the command syntax when comparing two time series.

CompareTimeSeries command editor to compare two time series

CompareTimeSeries Command Editor to Compare 2 Time Series (see full-size image)

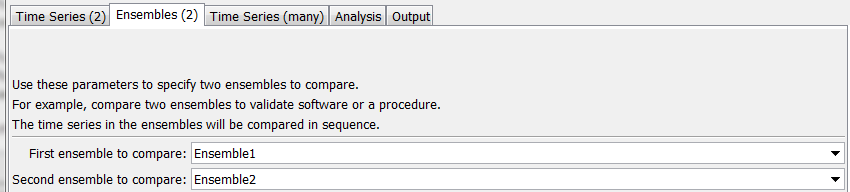

The following dialog is used to edit the command and illustrates the command syntax when comparing two ensembles.

CompareTimeSeries command editor to compare two ensembles

CompareTimeSeries Command Editor to Compare 2 Ensembles (see full-size image)

The following dialog is used to edit the command and illustrates the command syntax when comparing many time series.

CompareTimeSeries Command Editor to compare many time series

CompareTimeSeries Command Editor to Compare Many Time Series (see full-size image)

The following dialog is used to edit the command and illustrates the command syntax for analysis parameters.

CompareTimeSeries command editor for Analysis parameters

CompareTimeSeries Command Editor for Analysis Parameters (see full-size image)

The following dialog is used to edit the command and illustrates the command syntax for output parameters.

CompareTimeSeries command editor for Output parameters

CompareTimeSeries Command Editor for Output Parameters (see full-size image)

Command Syntax

The command syntax is as follows:

CompareTimeSeries(Parameter="Value",...)

Command Parameters

Tab Parameter                           Description Default
Time Series (2) TSID1 First time series identifier (or alias) to compare. Specify if only 2 time series are compared.
TSID2 Second time series identifier (or alias) to compare. Specify if only 2 time series are compared.
Ensembles (2) EnsembleID1 First ensemble identifier to compare. Specify if time series from 2 ensembles are compared.
EnsembleID2 Second ensemble identifier to compare. Specify if time series from 2 ensembles are compared.
Time Series (many) MatchLocation Match the location part of time series identifiers when matching time series to compare. True
MatchDataType Match the data type part of time series identifiers when matching time series to compare. False
MatchAlias Match the time series alias when matching time series to compare. If the aliases are unique, there may be no need to use MatchLocation and MatchDataType. False
Analysis Precision When comparing data values, round the values to the given precision. For example, a precision of 2 will round to the hundredths place. This can be used to do comparisons on the lowest precision of the available time series. Compare the available values without rounding.
Tolerance Specify a comma-separated list of values. The difference in the time series values will be compared to the tolerances and messages printed to the log file. A tolerance of zero will be used to detect differences.
CompareFlags Indicate whether data flags should be compared, False or True. False
AnalysisStart The starting date/time to analyze for differences. Specify a date/time of appropriate precision for the time series or OutputStart to use the output start. Analyze all available data.
AnalysisEnd The ending date/time to analyze for differences. Specify a date/time of appropriate precision for the time series or OutputEnd to use the output end. Analyze all available data.
DiffFlag Specify as a single character to append a flag to the data flags for the time series. Each value that is different is flagged in both time series that are compared. The flag can be displayed by the graphing package. This is useful for verification processes. New time series will be created with the original identifier preceded by Diff_. Do not flag data.
AllowedDiff If the number of differences is <= the value, the time series are considered to be the same. 0
IfDifferent Action taken if a difference is detected:
  • Ignore - no action is taken
  • Warn - a warning message is generated
  • Fail - a failure message is generted
Ignore because one of IfDifferent or IsSame must be specified.
IfSame Action taken if no differences are detected:
  • Ignore - no action is taken
  • Warn - a warning message is generated
  • Fail - a failure message is generted
Ignore because one of IfDifferent or IsSame must be specified.
Output CreateDiffTS Indicate whether a time series should be created containing the differences between time series (TS2 – TS1):
  • False - do not create difference time series (fastest)
  • IfDifferent - create difference time series when a difference is detected (next fastest)
  • True - create difference time series for all time series, even if no differences are found (slowest)
Difference time series are useful to visually evaluate the differences and process the results with other commands. For example, see raster graphs and the ProcessRasterGraph.
False
DifferenceFile Path to output file containing a list of all time series and whether differences are detected. Can specify using ${Property} syntax. Do not create file.
SummaryFile Path to output file containing a summary of time series with differences. Can specify using ${Property} syntax. Do not create file.
TableID Table identifier for table to create listing differences. No output table will be created.
DiffCountProperty Name of processor property to set with count of timesteps with differences. No property will be set.

Examples

The following example illustrates how time series from two files can be compared. For example, use similar commands to compare results from two model runs or two database queries:

# Example to compare files.  Since they are different, a warning will be generated.
ReadDateValue(InputFile="RawData1.dv")
ReadDateValue(InputFile="RawData1Scaled.dv")
CompareTimeSeries(Precision=2,WarnIfDifferent=True)

The following example compares matching time series for the full available period, doing checks for several tolerances:

CompareTimeSeries(Precision=2,Tolerance="0,.1,.5,1",DiffFlag="x")

The following example compares data only within the output period, as specified by the SetOutputPeriod command:

CompareTimeSeries(Precision=2,Tolerance="0,.1,.5,1",
AnalysisStart="OutputStart",AnalysisEnd="OutputEnd",DiffFlag="x")

Troubleshooting

See the main TSTool Troubleshooting documentation.
