TSTool / Command / WriteTimeSeriesToExcel


Overview

The WriteTimeSeriesToExcel command writes one or more time series to an Excel workbook. The following functionality is provided:

  • Time series are written in columns (see WriteTimeSeriesToExcelBlock for alternate formatting options).
  • The worksheet and position in worksheet can be specified.
  • The output can be created or appended.
  • Separate columns can be written for date/time, date, and/or time. Currently date/time values are written as strings but Excel date objects will be enabled in the future.
  • Cell comments can be formatted using data flags and other time series properties.

TSTool uses the Apache POI software to read/write the Excel file and consequently functionality is constrained by the features of that software package.

Command Editor

The command is available in the following TSTool menu:

  • Commands / Spreadsheet Processing

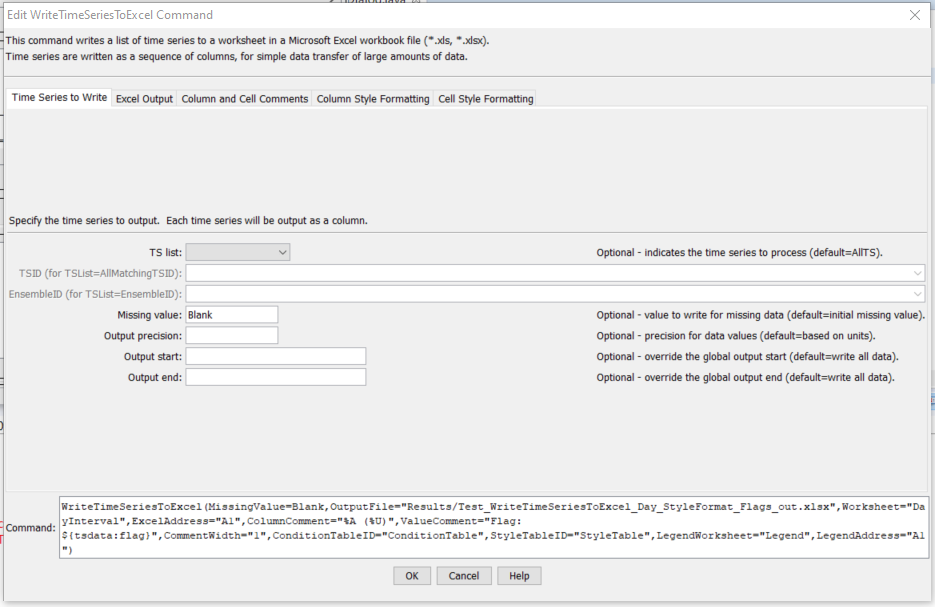

The following dialog is used to edit the command and illustrates the syntax of the command.

WriteTimeSeriesToExcel command editor

WriteTimeSeriesToExcel Command Editor (see full-size image)

The following dialog is used to edit the command and illustrates the syntax of the command for output parameters.

WriteTimeSeriesToExcel command editor for Output parameters

WriteTimeSeriesToExcel Command Editor for Output Parameters (see full-size image)

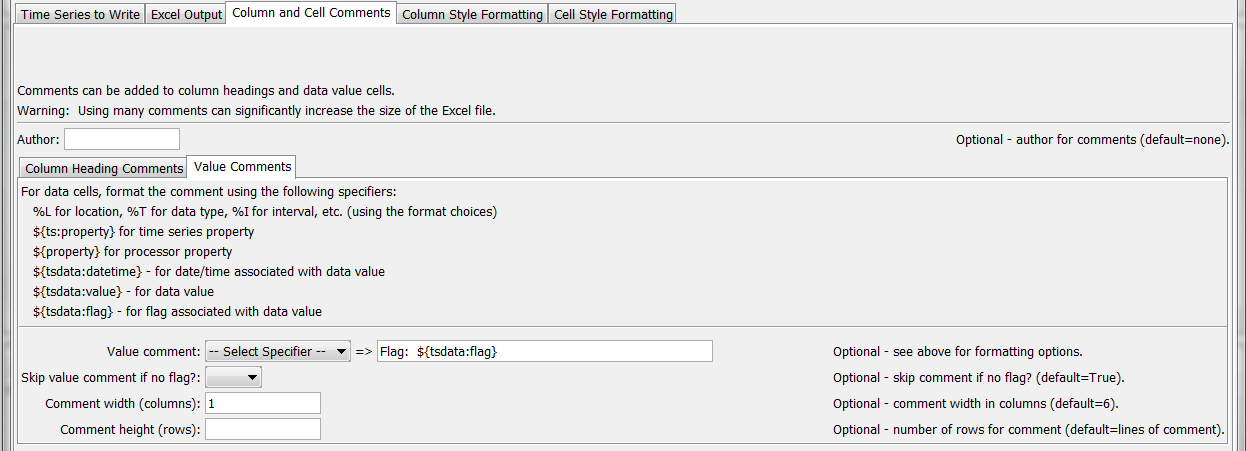

The following dialog is used to edit the command and illustrates the syntax of the command for column and cell comment parameters.

WriteTimeSeriesToExcel command editor for Column and Cell Comments parameters

WriteTimeSeriesToExcel Command Editor for Column and Cell Comments Parameters (ee also the full-size image)

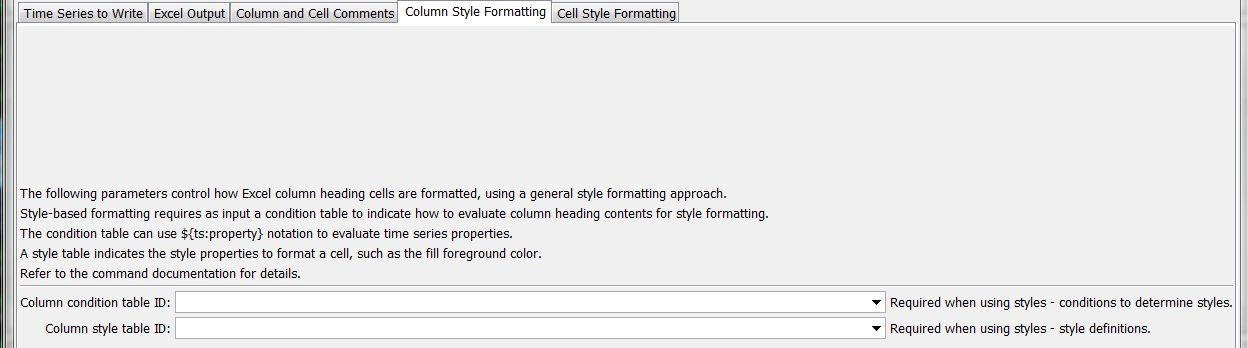

The following dialog is used to edit the command and illustrates the syntax of the command for column style formatting parameters.

WriteTimeSeriesToExcel command editor for Column Style Formatting parameters

WriteTimeSeriesToExcel Command Editor for Column Style Formatting Parameters (see full-size image)

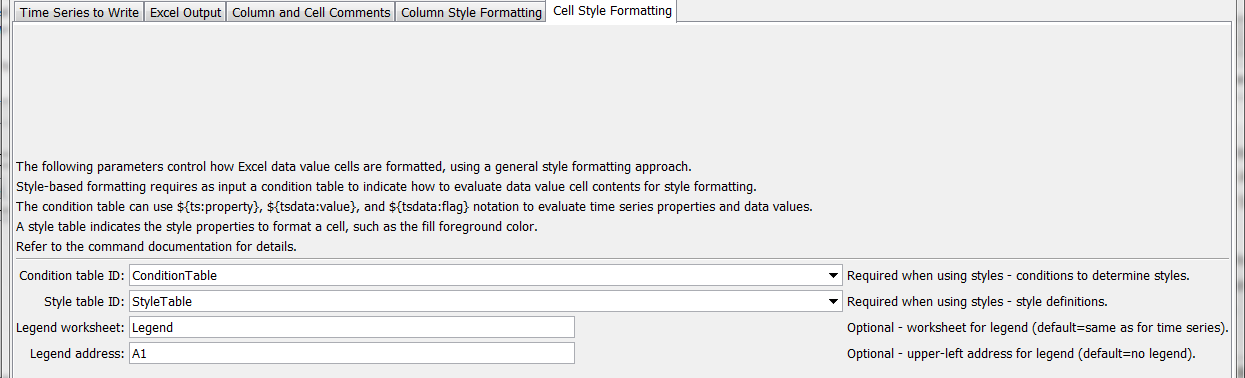

The following dialog is used to edit the command and illustrates the syntax of the command for data value cell style formatting parameters.

WriteTimeSeriesToExcel Command Editor for Data Value Cell Style Formatting parameters

WriteTimeSeriesToExcel Command Editor for Data Value Cell Style Formatting Parameters (see full-size image)

Command Syntax

The command syntax is as follows:

WriteTimeSeriesToExcel(Parameter="Value",...)

Command Parameters

Parameter                                  Description Default
TSList Indicates the list of time series to be processed, one of:
  • AllMatchingTSID – all time series that match the TSID (single TSID or TSID with wildcards) will be processed.
  • AllTS – all time series before the command.
  • EnsembleID – all time series in the ensemble will be processed (see the EnsembleID parameter).
  • FirstMatchingTSID – the first time series that matches the TSID (single TSID or TSID with wildcards) will be processed.
  • LastMatchingTSID – the last time series that matches the TSID (single TSID or TSID with wildcards) will be processed.
  • SelectedTS – the time series are those selected with the SelectTimeSeries command.
AllTS
TSID The time series identifier or alias for the time series to be processed, using the * wildcard character to match multiple time series. Can be specified using ${Property}. Required if TSList=*TSID
EnsembleID The ensemble to be processed, if processing an ensemble. Can be specified using ${Property}. Required if TSList=*EnsembleID
MissingValue Value to write to Excel for missing data values. Original missing value.
Precision The number of digits after the decimal for data values. Determine from units.
OutputStart The date/time for the start of the output. Can be specified using processor ${Property}. Use the global output period.
OutputEnd The date/time for the end of the output. Can be specified using processor ${Property}. Use the global output period.
OutputFile
required
The name of the Excel workbook file (*.xls or *.xlsx) to write, as an absolute path or relative to the command file location. If the Excel file does not exist it will be created. Can be specified using processor ${Property}. None – must be specified.
Append Indicate whether the sheet being written should appended to an existing workbook. False – create a new workbook.
Worksheet The name of the worksheet in the workbook to write. If the worksheet does not exist it will be created. Can be specified using processor ${Property}. Write to the first worksheet.
ExcelAddress Indicates the block of cells to write, using Excel address notation (e.g., A1:D10). Must specify address using one of available address parameters.
ExcelNamedRange Indicates the block of cells to write, using an Excel named range. Must specify address using one of available address parameters.
ExcelTableName Indicates the block of cells to write, using an Excel named range. Must specify address using one of available address parameters.
KeepOpen Indicate whether to keep the Excel file open (True) or close after creating (False). Keeping the file open will increase performance because later commands will not need to reread the workbook. Make sure to close the file in the last Excel command. False
DateTimeColumn The name of the column for the date/time. Date if day, month, or year interval, DateTime otherwise.
DateTimeFormatterType Specify the date/time formatter type, which indicates the syntax for DateTimeFormat. Currently, only C is supported, corresponding to the C programming language strftime() function, which is also used by other software. C
DateTimeFormat The format used to expand the date/time corresponding to each time series data value. The format string can contain literal strings and specifiers supported by the DateTimeFormatterType.
DateColumn The name of the column for the date, if date and time need to be in separate columns. Date
DateFormatterType Specify the date/time formatter type, which indicates the syntax for DateFormat. Currently, only C is supported, corresponding to the C programming language strftime() function, which is also used by other software. C
DateFormat The format used to expand the date/time corresponding to each time series data value. The format string can contain literal strings and specifiers supported by the DateFormatterType.
TimeColumn The name of the column for the time, if date and time need to be in separate columns. Time
TimeFormatterType Specify the date/time formatter type, which indicates the syntax for TimeFormat. Currently, only C is supported, corresponding to the C programming language strftime() function, which is also used by other software. C
TimeFormat The format used to expand the date/time corresponding to each time series data value. The format string can contain literal strings and specifiers supported by the TimeFormatterType.
ValueColumns The name(s) of the column(s) corresponding to each time series, to use for the values. Specify with % formatters, ${ts:property} and ${property}. In the future a parameter may be added to more specifically define the column names. %L_%T
Author Name to use in comments for author. No author
ColumnComment A string to format for column heading comments for each time series. See ValueColumns for formatting options. No comments.
ColumnCommentWidth Width of column comments (number of columns). 6
ColumnCommentHeight Height of column comments (number of rows). Number of lines in comment.
ValueComment See ValueColumns for formatting options. The string ${tsdata:flag} can also be specified to include the data flag for the cell. No comments.
SkipValueCommentIfNoFlag Indicate whether the ValueComment should be skipped if the data flag for a cell is blank. True
CommentWidth Width of data value comments (number of columns). 6
CommentHeight Height of data value comments (number of rows). Number of lines in comment.
ColumnConditionTableID Identifier for condition table used to format column headings (see below). Can be specified using processor ${Property}. Style formatting is not used.
ColumnStyleTableID Identifier for style table used to format column headings (see below). Can be specified using processor ${Property}. Style formatting is not used.
ConditionTableID Identifier for condition table used to format data value cells (see below). Can be specified using processor ${Property}. Style formatting is not used.
StyleTableID Identifier for style table used to format data value cells (see below). Can be specified using processor ${Property}. Style formatting is not used.
LegendWorksheet Name of worksheet where the legend should be created. The legend displays conditions and styles. Time series worksheet.
LegendAddress Address A1, etc. for upper-left of legend. No legend will be created.

Excel cell formatting consists of number formatting, cell colors, cell width, etc. The Style Formatting tab provides general formatting capabilities for data cells. Consider the following time series data table, where the goal is to write the TSTool time series to Excel and format cells to indicate specific conditions of interest. This approach is implemented similarly in the WriteTableToExcel command.

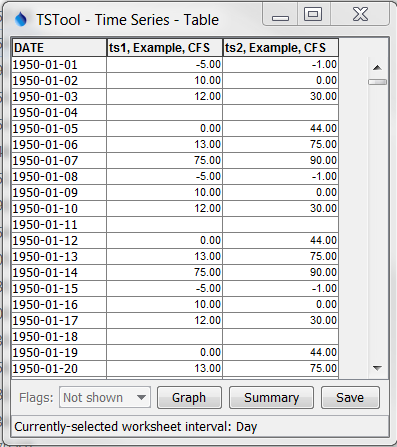

Data table used with command style formatting

Data Table used with WriteTimeSeriesToExcel Command Style Formatting (see full-size image)

To configure style-based formatting, a style table is defined listing properties for formatting cells. This table can be defined as a CSV file, Excel worksheet or other format and read into TSTool using a suitable command. The following figure illustrates a basic style table, which can be shared among commands.

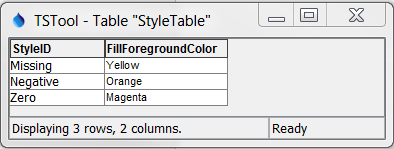

Style table used with command for specific checks and formatting

Style Table used with WriteTimeSeriesToExcel Command for Specific Checks and Formatting (see full-size image)

The following style table column names are recognized. The default values for cell style properties not listed in the table are those provided by Excel.

Recognized Style Table Column Names

Column Name                                         Description Default
StyleID An identifier for the style, which is used in the format table below. None – must be specified.
FillForegroundColor The foreground fill color as a named color (e.g., Red), RGB triplet (255,255,255), or hex color 0xFFFFFF. The following named colors are recognized: black, blue, cyan, darkgray, gray, green, lightgray, magenta, none, orange, pink, red, white, yellow. No fill color.
FillPattern Fill pattern for cells using FillForegroundColor and FillBackgroundColor. Currently always defaults to solid - fill pattern is ignored.

The condition table indicates how the styles are used for time series data. The following example indicates that any time series with identifier (or alias) starting with ts should be processed to evaluate for missing, negative, and zero values.

Condition table used with command for specific checks and formatting

Condition Table used with WriteTimeSeriesToExcel Command for Specific Checks and Formatting (see full-size image)

The column names for the condition table must be specified as shown. The Condition column recognizes the following specifiers:

  • ${ts:property} – a time series property, which can be used to format comments for column headings or data value cells
  • ${tsdata:value} – the time series data value, used to evaluate numerical conditions (cannot be used to format column headings)
  • ${tsdata:flag} – the time series flag, used to evaluate string conditions (cannot be used to format column headings)

Values on the left and right of the operator must be separated with spaces to facilitate parsing the condition. The Condition column recognizes the following operators:

Condition Table Operators

Operator Description**
< Less than.
<= Less than or equal to.
== Equal to. Specify the right-side value as missing to check for missing.
!= Not equal to. Specify the right-side value as missing to check for missing.
> Greater than.
>= Greater than or equal to.
contains Specify for string values to check for substring (case-dependent).
startswith Specify for string values to check for substring at start (case-dependent).
endswith Specify for string values to check for substring at end (case-dependent).

Multiple conditions can be specified by using AND (surrounded by a single space) between conditions.

The following figure illustrates the output from the above example.

Example output for specific checks and formatting

WriteTimeSeriesToExcel Command Example Output for Specific Checks and Formatting (see full-size image)

The following example illustrates using multiple conditions to implement a color scale.

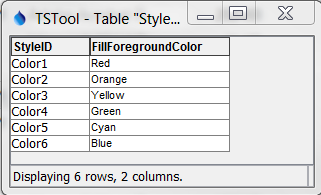

Style table used with command for a color scale

Style Table used with WriteTimeSeriesToExcel Command for a Color Scale (see full-size image)

Condition table used with a color scale

Condition Table used with WriteTimeSeriesToExcel Command for a Color Scale

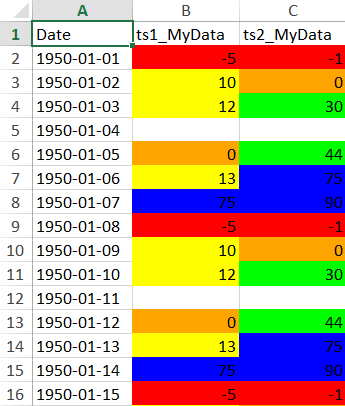

The following is the output.

Example output for style formatting

WriteTimeSeriesToExcel Command Example Output for Style Formatting (see full-size image)

Examples

See the automated tests.

Troubleshooting

See the main TSTool Troubleshooting documentation.
