TSTool / Command / CalculateTimeSeriesStatistic


Overview

The CalculateTimeSeriesStatistic command calculates a statistic for a time series (typically a single value, but may have multiple output values such as TrendOLS) and optionally adds the result to a table and/or sets a time series property. Some statistics, such as Max also have date/time. Multiple time series can be processed. The sample from each time series consists of data values for the full period or a shorter analysis period if specified for the command. Missing values typically are ignored unless significant for the statistic (e.g., Statistic=MissingCount).

See the Statistic Examples for a list of commands that calculate statistics.

Command Editor

The command is available in the following TSTool menu:

  • Commands / Analyze Time Series

The following dialog is used to edit the command and illustrates the command syntax. Most statistics do not require additional input; however, those that do utilize the Value* parameters to specify additional information. See the documentation below and move the mouse over the entry fields in the dialog.

CalculateTimeSeriesStatistic command editorfor Input parameters

CalculteTimeSeriesStatistic Command Editor for Input Parameters (see full-size image)

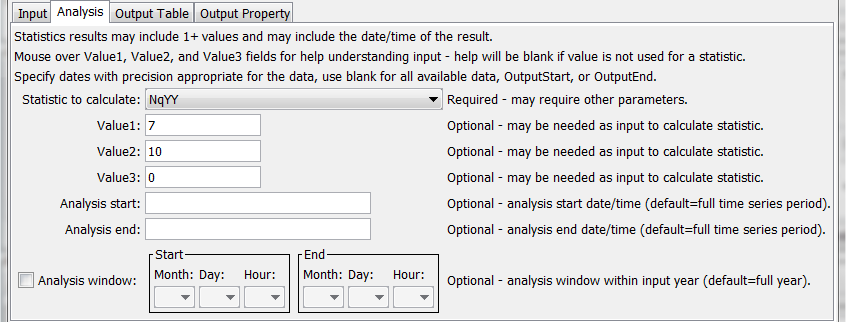

CalculateTimeSeriesStatistic command editor for Analysis parameters

CalculteTimeSeriesStatistic Command Editor for Analysis Parameters (see full-size image)

CalculateTimeSeriesStatistic command editor for Output Table parameters

CalculteTimeSeriesStatistic Command Editor for Output Table Parameters (see full-size image)

CalculateTimeSeriesStatistic command editor for Output Property parameters

CalculteTimeSeriesStatistic Command Editor for Output Property Parameters (see full-size image)

Command Syntax

The command syntax is as follows:

CalculateTimeSeriesStatistic(Parameter="Value",...)

Command Parameters

Parameter                                            Description Default
TSList Indicates the list of time series to be processed, one of:
  • AllMatchingTSID – all time series that match the TSID (single TSID or TSID with wildcards).
  • AllTS – all time series before the command.
  • EnsembleID – all time series in the ensemble.
  • FirstMatchingTSID – the first time series that matches the TSID (single TSID or TSID with wildcards).
  • LastMatchingTSID – the last time series that matches the TSID (single TSID or TSID with wildcards).
  • SelectedTS – the time series selected with the SelectTimeSeries command.
AllTS
TSID The time series identifier or alias for the time series to be processed, using the * wildcard character to match multiple time series. Can be specified with processor ${Property}. Required if TSList=*TSID.
EnsembleID The ensemble to be processed, if processing an ensemble. Can be specified with processor ${Property}. Required if TSList=EnsembleID.
Statistic Statistic to compute as shown in the Statistic Details table below. None – must be specified.
Value1 Input data required by the statistic. Currently the command editor does not check the value for correctness – it is checked when the statistic is computed. See Statistic Details table below.
Value2 Input data required by the statistic. Currently the command editor does not check the value for correctness – it is checked when the statistic is computed. See Statistic Details table below.
Value3 Input data required by the statistic. Currently the command editor does not check the value for correctness – it is checked when the statistic is computed. See Statistic Details table below.
AnalysisStart The date/time to start analyzing data as valid date/time string or ${Property}. Full period is analyzed.
AnalysisEnd The date/time to end analyzing data as valid date/time string or ${Property}. Full period is analyzed.
AnalysisWindowStart The calendar date/time for the analysis start within each year. Specify using the format MM, MM-DD, MM-DD hh, or MM-DD hh:mm, consistent with the time series interval precision. A year of 2000 will be used internally to parse the date/time. Use this parameter to limit data processing within the year, for example to analyze only a season. The analysis window has only been enabled for Count, GECount, GTCount, Last, LastNonmissing, LECount, LTCount, Max, Min, MissingCount, MissingPercent, NonmissingCount, and NonmissingPercent statistics. Analyze the full year.
AnalysisWindowEnd Specify date/time for the analysis end within each year. See AnalysisWindowStart for details. Analyze the full year.
TableID Identifier for table that receives the statistic. An existing table can be specified. If not found, a new table will be created. Can be specified with processor ${Property}. Optional – table output is not required.
TableTSIDColumn Table column name that is used to look up the time series. If a matching TSID is not found, a row will be added to the table. If a TSID is found, the statistic cell value for the time series is modified. The column name can use processor ${Property} and time series % specifiers (e.g., %L for location) and properties using syntax ${ts:Property}. Optional – table output is not required.
TableTSIDFormat The specification to format the time series identifier to insert into the TSID column. Use the format choices and other characters to define a unique identifier. Time series alias if available, or the time series identifier.
TableStatisticColumn Table column name(s) to receive the statistic value(s). If not found in the table, a new column is added automatically. The column names can use processor ${Property} and use time series % specifiers (e.g., %L for location) and properties using syntax ${ts:Property}. Optional – table output is not required.
TableStatisticDateTimeColumn Table name for date/time corresponding to statistic, if available (for example for Max). Date/time not output to table.
TimeSeriesPropertyName If specified, the output statistic will be set as a property value for the time series. In the future, statistics with multiple values will use a variation of the property name. No property is set.
StatisticValueProperty Name of the processor property to set the value of the statistics. No property is set.

The following table provides additional information about specific statistics, in particular to describe how the statistic is computed, whether additional input needs to be provided with Value command parameters, and whether multiple statistic values are output in results.

Statistic Details

Statistic                                         Description Analysis Window Allowed? Date/Time for Statistic Calculated? Required Values
Count Number of data values total, including missing and non-missing. Yes
DeficitMax Maximum deficit value (where deficit is mean minus value). No
DeficitMean Mean deficit value (where deficit is mean minus value). No
DeficitMin Minimum deficit value (where deficit is mean minus value). No
DeficitSeqLengthMax Maximum number of sequential intervals where each value is less than the mean (for example maximum drought length). No
DeficitSeqLengthMean Mean number of sequential intervals where each value is less than the mean (for example mean drought length). No
DeficitSeqLengthMin Minimum number of sequential intervals where each value is less than the mean (for example minimum drought length). No
DeficitSeqMin Maximum sum of sequential values where each value is less than the mean (for example maximum drought water volume). No
DeficitSeqMean Mean of the sum of sequential values where each value is less than the mean (for example mean drought water volume). No
DeficitSeqMin Minimum sum of sequential values where each value is less than the mean (for example minimum drought water volume). No
GECount Count of values greater than or equal to Value1. Yes Value1 – criteria to check
GTCount Count of values greater than Value1. Yes Value1 – criteria to check
Lag-1AutoCorrelation Autocorrelation between values and the those that follow in the next time step, given by:
lag1 autocorrelation equation
No
Last Last non-missing or missing value. Second statistic is the date/time of the value. Yes Yes
LastNonmissing Last non-missing value. Second statistic is the date/time of the value. Yes Yes
LECount Count of values less than or equal to Value1. Yes Value1 – criteria to check
LTCount Count of values less than Value1. Yes Value1 – criteria to check
Max Maximum value. Yes Yes (first)
Mean Mean value. No
Min Minimum value. Yes Yes (first)
MissingCount Number of missing values. Yes
MissingPercent Percent of values that are missing. Yes
MissingSeqLengthMax Maximum number of sequential values that are missing. No
NonmissingCount Number of non-missing values. Yes
NonmissingPercent Percent of values that are not missing. Yes
NqYY This statistic is typically used to evaluate the return period of low flows and is implemented only for daily data. The N indicates the number of daily values to be averaged and YY indicates the return interval. For example, 7q10 indicates the flow corresponding to the 10-year recurrence interval for minimum average daily flow (for 7 days) in a year. This statistic is computed as follows, using 7q10 as an example:
  1. Determine the number of years to be analyzed (from analysis period command parameters or time series data).
  2. For each year, loop through each day from January 1 to December 31. Compute an average flow by averaging 7 days, in this case with 3 values on each side of the current day and including the current day. If at the end of the year, use 3 values from adjoining years. The number of missing data allowed is controlled by the Value3 command parameter.
  3. For the year, save the minimum 7-day average.
  4. Utilize the minimum values for all years, with log-Pearson Type III distribution, to determine the value for the 10-year recurrence interval. See https://pubs.usgs.gov/sir/2008/5126/section3.html for a description of NqYY and “Hydrology for Engineers, 3rd Edition,” Linsley, Kohler, Paulhus for a description of log-Pearson Type III distribution.
No Value1 – specify the number of daily values to be averaged. Currently this must be an odd number to allow bracketing the current day.

Value2 – specify the return interval (e.g., 10).

Value3 – specify the number of missing values allowed in the average (e.g., 0 for most rigorous analysis). It may be useful to set this value if, for example, a single daily value is available in the time series, for example entered on the first day of the month.
Skew Skew coefficient, as follows: skew equation
where s = standard deviation
No
StdDev Standard deviation. No
SurplusMin Maximum surplus value (where surplus is value minus mean). No
SurplusMean Mean surplus value (where surplus is value minus mean). No
SurplusMin Minimum surplus value (where surplus is value minus mean). No
SurplusSeqLengthMax Maximum number of sequential intervals where each value is greater than the mean (for example maximum water surplus length). No
SurplusSeqLengthMean Mean number of sequential intervals where each value is greater than the mean (for example mean water surplus length). No
SurplusSeqLengthMin Minimum number of sequential intervals where each value is greater than the mean (for example minimum water surplus length). No
SurplusSeqMin Maximum sum of sequential values where each value is greater than the mean (for example maximum water surplus volume). No
SurplusSeqMean Mean of the sum of sequential values where each value is greater than the mean (for example mean water surplus volume). No
SurplusSeqMin Minimum sum of sequential values where each value is greater than the mean (for example minimum water surplus volume). No
Total Total of values. No
TrendOLS Ordinary least squares analysis is used to compute results that are named TableStatisticColumn with appended _Intercept, _Slope, and _R2. No
Variance Variance. No

Examples

See the automated tests.

The following example illustrates how to use the command to compute the 7q10 statistic for daily flow:

ReadDateValue(Alias=”linsley”,InputFile="Data\linsley.dv")
NewTable(TableID="Table1",Columns="TSID,string;7q10,double")
CalculateTimeSeriesStatistic(Statistic="NqYY",Value1=7,Value2=10,Value3=6,TableID="Table1",TableTSIDColumn="TSID",TableStatisticColumn="7q10")
WriteTableToDelimitedFile(TableID="Table1",OutputFile="Results/Test_CalculateTimeSeriesStatistic_7q10_linsley_out.csv")

Troubleshooting

See the main TSTool Troubleshooting documentation.
