TSTool / Command / SetTimeSeriesValuesFromTable


Overview

The SetTimeSeriesValuesFromTable command sets values in time series by matching the TSID and date/time in a table. Examples of use are:

  • Provide data values from a table to override missing values in the time series
  • Set a stream of values from a table into time series

Command Editor

The command is available in the following TSTool menu:

  • Commands(Table) / Table, Time Series Processing

The following dialog is used to edit the command and illustrates the syntax of the command showing time series parameters.

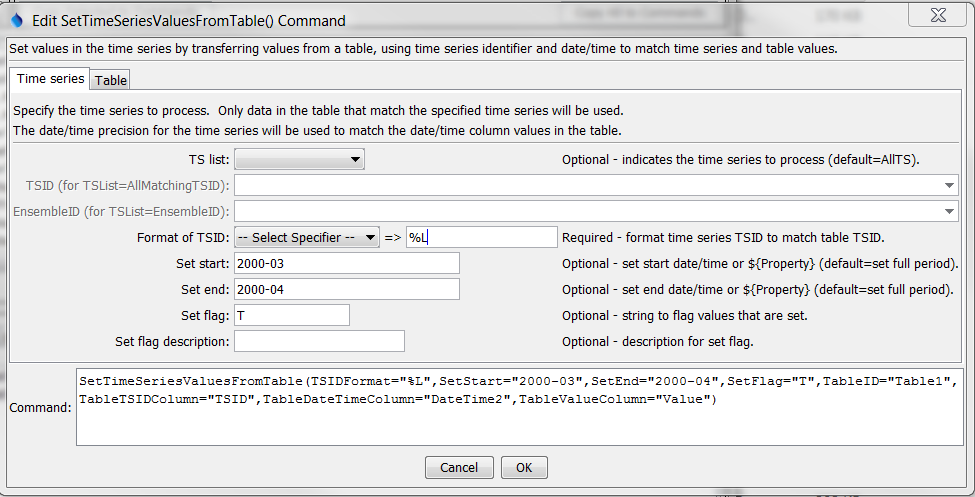

SetTimeSeriesValuesFromTable command editor for Time Series parameters

SetTimeSeriesValuesFromTable Command Editor for Time Series Parameters (see full-size image)

The following dialog is used to edit the command and illustrates the syntax of the command showing table parameters.

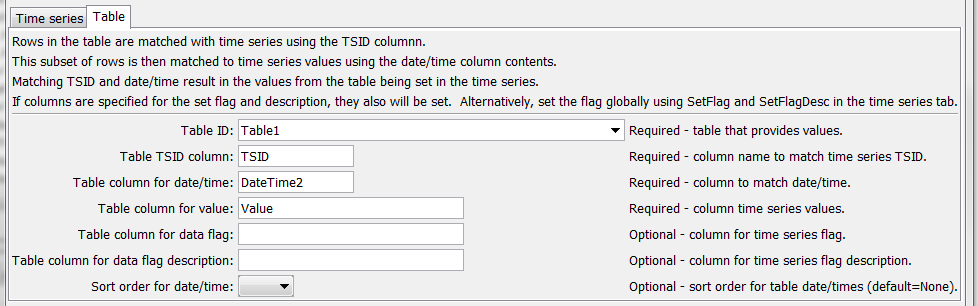

SetTimeSeriesValuesFromTable command editor for Table parmaeters

SetTimeSeriesValuesFromTable Command Editor for Table Parameters (see full-size image)

Command Syntax

The command syntax is as follows:

SetTimeSeriesValuesFromTable(Parameter="Value",...)

Command Parameters

Parameter                              Description Default
TSList Indicates the list of time series to be processed, one of:
  • AllMatchingTSID – all time series that match the TSID (single TSID or TSID with wildcards) will be processed.
  • AllTS – all time series before the command.
  • EnsembleID – all time series in the ensemble will be processed (see the EnsembleID parameter).
  • FirstMatchingTSID – the first time series that matches the TSID (single TSID or TSID with wildcards) will be processed.
  • LastMatchingTSID – the last time series that matches the TSID (single TSID or TSID with wildcards) will be processed.
  • SelectedTS – the time series are those selected with the SelectTimeSeries command.
AllTS
TSID The time series identifier or alias for the time series to be processed, using the * wildcard character to match multiple time series. Can be specified using ${Property}. Required if TSList=*TSID
EnsembleID The ensemble to be processed, if processing an ensemble. Can be specified using ${Property}. Required if TSList=*EnsembleID
TSIDFormat The specification to format the time series identifier to match the TableTSIDColumn column. None – must be specified.
SetStart The date/time to start setting values, or processor ${Property}. Set the full period.
SetEnd The date/time to end setting values, or processor ${Property}. Set the full period.
SetFlag String to flag values that are set, used for all time series. No flag.
SetFlagDesc Description for SetFlag. Default.
TableID The lookup table identifier. Can specify using processor ${Property}. None – must be specified.
TableTSIDColumn Table column name that is used to match the time series identifier for processing. None – must be specified.
TableDateTimeColumn Table column name that is used to match the date/time for processing time series values. None – must be specified.
TableValueColumn Table column name for data values to be set in the time series. None – must be specified.
TableSetFlagColumn Table column name for data flags to be set in the time series, will override SetFlag. No flags will be set.
TableSetFlagDescColumn Table column name for data flag descriptions for TableSetFlag, will override SetFlagDesc. No flags will be set.
SortOrder Indicate whether to sort the table rows by date/time. After sorting, the first matched date/time will be set in the time series. Currently sorting is not implemented – only one value per TSID-date/time combination should be present in the table.

Examples

See the automated tests.

Troubleshooting

See the main TSTool Troubleshooting documentation.
