TSTool / Command / ReadTableFromJSON
Overview
The ReadTableFromJSON
command reads a table from a JavaScript Object Notation (JSON) file
or an object that has been created by another command such as
NewObject
.
JSON is a hierarchical data representation that can have multiple nesting levels.
Arrays are indicated by brackets [ ]
,
objects are indicated by curly braces { }
and "name": value
pairs define data for an object.
Objects are generically represented in software as a "map" or "dictionary".
A simple example is as follows,
where the outer braces enclose the entire JSON object and someArray
is the data array of interest:
{
"someArray": [
{
"stringProp": "a string",
"numberProp": 1.0,
"number2Prop": 1,
"dateTimeProp": "2021-01-02T00:01:03-06:00"
},
{
"stringProp": "another string",
"numberProp": 2.0,
"number2Prop": 2,
"dateTimeProp": "2021-01-03T00:01:03-06:00"
},
... etc. ...
]
}
This command has the following functionality:
- An array name must be specified to indicate the level within the JSON to read:
- If not specified, the topmost array is used.
- All simple data objects in the array are read unless filtered.
- Additional arrays and maps (dictionaries) are ignored.
- Table column names match the object data names:
- Objects do not need to have consistently-named properties, although this is typical.
- The names within each object correspond to table column names in output.
- Processing of names is case dependent and redundant names will overwrite.
- Types for table columns are determined by examining the JSON structure:
- Quoted values are interpreted to be strings.
- Booleans are handled directly.
- Floating point numbers with decimal default to double precision output.
- Command parameters
ArrayColumns
,BooleanColumns
,DateTimeColumns
,DoubleColumns
,IntegerColumns
, andTextColumns
can be used to override the default data type mapping. - Arrays containing primitive values (such as all strings or all numbers), can be read into the table as an array column.
- The
ExcludeNames
parameter is provided to exclude JSON names within the data objects.
- Empty strings that are converted to non-string types are set to null.
Command Editor
The command is available in the following TSTool menu:
- Commands / Object Processing
- Commands(Table) / Read Table

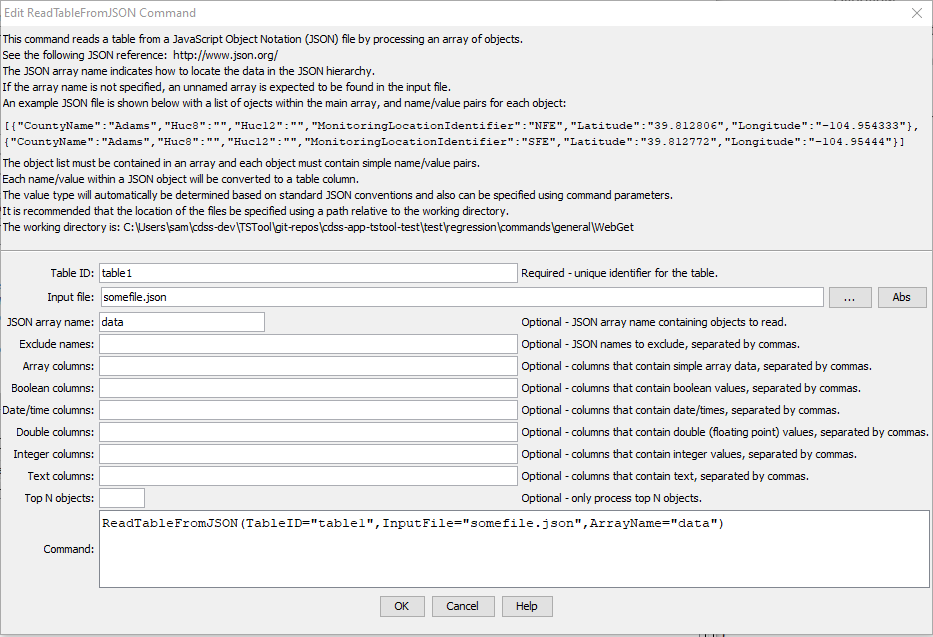

The following dialog is used to edit the command and illustrates the command syntax.
ReadTableFromJSON
Command Editor (see full-size image)
Command Syntax
The command syntax is as follows:
ReadTableFromJSON(Parameter="Value",...)
Command Parameters
Parameter | Description | Default |
---|---|---|
InputFile |
The name of the file to read, as an absolute path or relative to the command file location. Can be specified using processor ${Property} . |
Must be specified if ObjectID is not specified. |
ObjectID |
The identifier for an object that contains JSON data for the table. Can be specified using ${Property} . |
Must be specified if InputFile is not specified. |
TableID required |
Identifier to assign to the table that is read, which allows the table data to be used with other commands. Can be specified using processor ${Property} . |
None – must be specified. |
ArrayName |
JSON array name containing data objects to read. Can be specified using processor ${Property} . |
First array found will be read. |
AppendArrays |
If False , the first matching array is processed. If True , all matching arrays are processed and appended. |
False |
IncludeParents |
Planned feature. It may be necessary to include parent element values to ensure uniqueness. Parent data will be duplicated in child array table rows. | |
ExcludeNames |
List of JSON names in data objects to exclude from table, separated by commas. | Include all names. Can be specified using processor ${Property} . |
ArrayColumns |
List of comma-separated column names for columns that should be treated as containing primitive array data such as array of strings or numbers. Can be specified using processor ${Property} . |
Ignore array types. |
DateTimeColumns |
List of comma-separated column names for columns that should be treated as containing date/time values. These are JSON strings that contain text that can be converted to date/time objects. Can be specified using processor ${Property} . |
Date/time columns are not automatically determined and must be indicated. |
BooleanColumns |
List of comma-separated column names for columns that should be treated as containing boolean values. Can be specified using processor ${Property} . |
Automatically determine column type based on true and false values. |
DoubleColumns |
List of comma-separated column names for columns that should be treated as containing double-precision (floating point number) values. Can be specified using processor ${Property} . |
Automatically determine columns type based on numbers with decimal point. |
IntegerColumns |
List of comma-separated column names for columns that should be treated as containing integer values. Can be specified using processor ${Property} . |
Automatically determine column type based on numbers without decimal point. |
TextColumns |
List of comma-separated column names for columns that should be treated as containing text values. Can be specified using processor ${Property} . |
Default column type if other type is not determined. |
Top |
Specify the number of data rows to read, useful when prototyping an analysis process. | Process all rows. Can be specified using processor ${Property} . |
RowCountProperty |
Name of the property to set containing the number of rows in the output table. | A property is not set. |
Append |
Indicate whether to append results to the specified table (True ) or (re)create the table (False ). |
False |
Examples
See the automated tests.
Top Level Array (No Array Name)
The following JSON uses a top-level array of objects.
In this case the command wraps the data with { "toparray": }
so that a data map can be generated,
and the array is read because it is the first array that is found.
ReadTableFromJSON(TableID="Table1",InputFile="Data/toplevel-array.json",BooleanColumns="string_bool",DateTimeColumns="string_datetime",DoubleColumns="string_double",IntegerColumns="string_int")
[
{
"double": 1.0,
"int": 1,
"string": "s1",
"bool": true,
"datetime": "2021-01-01T01:01:01:01",
"string_double": "1.1",
"string_int": "11",
"string_bool": "true",
"string_datetime": "2021-11-11T01:11:11:11"
},
{
"double": 2.0,
"int": 2,
"string": "s2",
"bool": false,
"datetime": "2021-02-02T01:02:02:02",
"string_double": "2.2",
"string_int": "22",
"string_bool": "false",
"string_datetime": "2021-02-22T01:22:22:22"
},
{
"double": 3.0,
"int": 3,
"string": "s3",
"bool": true,
"datetime": "2021-03-03T01:03:03:03",
"string_double": "3.3",
"string_int": "33",
"string_bool": "true",
"string_datetime": "2021-03-30T01:33:33:33"
}
]
Named Array
The following JSON uses a named array of objects. Because there is only one array, the array name can be specified, or can be omitted.
ReadTableFromJSON(TableID="Table1",InputFile="Data/named-array.json",BooleanColumns="string_bool",DateTimeColumns="string_datetime",DoubleColumns="string_double",IntegerColumns="string_int")
or
ReadTableFromJSON(TableID="Table1",InputFile="Data/named-array.json",ArrayName="data",BooleanColumns="string_bool",DateTimeColumns="string_datetime",DoubleColumns="string_double",IntegerColumns="string_int")
{
"data" : [
{
"double": 1.0,
"int": 1,
"string": "s1",
"bool": true,
"datetime": "2021-01-01T01:01:01:01",
"string_double": "1.1",
"string_int": "11",
"string_bool": "true",
"string_datetime": "2021-11-11T01:11:11:11"
},
{
"double": 2.0,
"int": 2,
"string": "s2",
"bool": false,
"datetime": "2021-02-02T01:02:02:02",
"string_double": "2.2",
"string_int": "22",
"string_bool": "false",
"string_datetime": "2021-02-22T01:22:22:22"
},
{
"double": 3.0,
"int": 3,
"string": "s3",
"bool": true,
"datetime": "2021-03-03T01:03:03:03",
"string_double": "3.3",
"string_int": "33",
"string_bool": "true",
"string_datetime": "2021-03-30T01:33:33:33"
}
]
}
Nested Arrays (AppendArrays=True
)
The following JSON uses an outer array of objects that each contain a data array.
The array name is specified and AppendArrays=True
is specified to append the inner arrays.
Currently the properties of parent objects are not included but this feature is planned for the future.
ReadTableFromJSON(TableID="Table1",InputFile="Data/named-array-nested.json",ArrayName="data",AppendArrays=True,BooleanColumns="string_bool",DateTimeColumns="string_datetime",DoubleColumns="string_double",IntegerColumns="string_int")
{
"stations" : [
{
"name": "station1",
"data" : [
{
"double": 1.0,
"int": 1,
"string": "s1",
"bool": true,
"datetime": "2020-01-01T01:01:01:01",
"string_double": "1.1",
"string_int": "11",
"string_bool": "true",
"string_datetime": "2020-11-11T01:11:11:11"
},
{
"double": 2.0,
"int": 2,
"string": "s2",
"bool": false,
"datetime": "2020-02-02T01:02:02:02",
"string_double": "2.2",
"string_int": "22",
"string_bool": "false",
"string_datetime": "2020-02-22T01:22:22:22"
},
{
"double": 3.0,
"int": 3,
"string": "s3",
"bool": true,
"datetime": "2020-03-03T01:03:03:03",
"string_double": "3.3",
"string_int": "33",
"string_bool": "true",
"string_datetime": "2020-03-30T01:33:33:33"
}
]
},
{
"name": "station1",
"data" : [
{
"double": 100.0,
"int": 100,
"string": "s100",
"bool": true,
"datetime": "2021-01-01T01:01:01:01",
"string_double": "100.1",
"string_int": "110",
"string_bool": "true",
"string_datetime": "2021-11-11T01:11:11:11"
},
{
"double": 200.0,
"int": 200,
"string": "s200",
"bool": false,
"datetime": "2021-02-02T01:02:02:02",
"string_double": "200.2",
"string_int": "220",
"string_bool": "false",
"string_datetime": "2021-02-22T01:22:22:22"
},
{
"double": 300.0,
"int": 300,
"string": "s300",
"bool": true,
"datetime": "2021-03-03T01:03:03:03",
"string_double": "300.3",
"string_int": "330",
"string_bool": "true",
"string_datetime": "2021-03-30T01:33:33:33"
}
]
}
]
}
Troubleshooting
See the main TSTool Troubleshooting documentation.
