TSTool / Command / DeleteTableRows

Overview

The DeleteTableRows command deletes specified rows from a table using one of the following approaches:

  • Condition:
    • delete rows where a column value matches a condition
  • Row Number:
    • delete specific row numbers
    • delete all rows
    • delete first N or last N rows, useful when used with the SortTable command to process the first or last item(s) in a table

Because the deletion is a destructive action, only one of the above conditions is required to be specified. The number of rows deleted and the table row count after the delete can be set as processor properties so that the delete can be checked.

Command Editor

The command is available in the following TSTool menu:

  • Commands(Table) / Manipulate Table Values

The following dialog is used to edit the command and illustrates the syntax of the command.

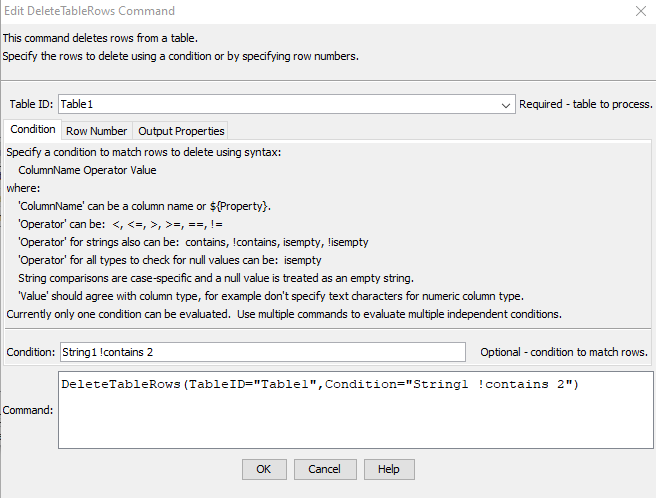

DeleteTableRows command editor for Condition parameter

DeleteTableRows Command Editor for Condition Parameter (see full-size image)

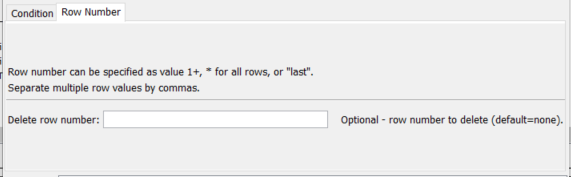

DeleteTableRows command editor for Row Number parameters

DeleteTableRows Command Editor for Row Number Parameters (see full-size image)

DeleteTableRows command editor for Output Properties parameters

DeleteTableRows Command Editor for Output Properties Parameters (see full-size image)

Command Syntax

The command syntax is as follows:

DeleteTableRows(Parameter="Value",...)

Command Parameters

Tab Parameter                           Description Default
All TableID
required		 The table identifier for the table to process. Can specify with ${Property}. None - must be specified.
Condition Condition A condition to match rows to be deleted. Can use ${Property} to specify row number. See additional information in the Tables appendix.
Row Number DeleteRowNumbers The row number(s) to delete:
  • comma-separated list of row numbers (1+)
  • last to delete the last row
  • * to delete all rows.

Can use ${Property}.
First
  • If a number N is specified, the first N rows will be deleted.
  • If a number -N is specified, all rows except the first N will be deleted.
Last
  • If a number N is specified, the last N rows will be deleted.
  • If a number -N is specified, all rows except the last N will be deleted.
Output Properties DeleteCountProperty The name of a property to set to the number of rows deleted.
RowCountProperty The name of a property to set to the number of table rows after the delete.

Examples

See the automated tests.

A simple comma-separated-value data as follows can be read with ReadTableFromDelimitedFile:

# Simple table for testing
"string1","double1","integer1"
"String1",1.0,1
"String2",2.0,2
"String3",3.0,3

The command file to read the above file and remove the first and last rows is as follows:

ReadTableFromDelimitedFile(TableID="Table1",InputFile="testtable.csv")
DeleteTableRows(TableID="Table1",DeleteRowNumbers="1")
DeleteTableRows(TableID="Table1",DeleteRowNumbers="last")

Troubleshooting

See the main TSTool Troubleshooting documentation.
