TSTool / Command / ReadPropertiesFromFile

Overview

The ReadPropertiesFromFile command reads the values of one or properties from a file, which can then be used in workflows using ${Property} syntax. The corresponding WritePropertiesToFile command can be used to write properties to a file. Processor properties include built-in global defaults such as InputStart, InputEnd, OutputStart, OutputEnd, OutputYearType, WorkingDir, and also user-defined properties set with the SetProperty command. Internally, properties have a name and a value, which is of a certain type (Double, String, Integer, DateTime, etc.). Examples of using the command include:

  • creating tests to verify that properties are being set
  • passing information from TSTool to another program, such as a Python script
  • storing persistent information for later use, such as the date/time that data were last downloaded from a web service
  • reading text from a file to merge into a file

Property File Formats

The following table lists supported property file formats. General guidelines include:

  • lines beginning with # are treated as comments
  • property values can be surrounded by matching single or double quotes, for example to better encapsulate strings that include spaces

Property File Formats

Format                                     Description
INI Configuration file format (see Wikipedia article). This command treats lines starting with # and ; (semi-colon) as comments. If the property is defined after a [Section] has been defined, the property name will include the section name as follows: Section.PropertyName. Properties in a section defined with ${Property} can refer to properties in the same section without prefixing with the section; however, ${Section.PropertyName} must be used to refer to properties in a different section. Global properties that are defined before the first [Section] can be referenced using a property name without a section.
NameValue Simple format, all properties handled as text:

PropertyName=PropertyValue
PropertyName="Property value, quoted if necessary"
NameTypeValue Same as NameValue format, with non-primitive objects treated as simple constructors:

PropertyName=PropertyValue
DateTimeProperty=DateTime("2010-10-01 12:30")

This is mainly used for DateTime objects and more types will be added in the future, as necessary.
NameTypeValuePython Similar to the NameTypeValue format; however, objects are represented using “Pythonic” notation, to allow the file to be used directly by Python scripts:

PropertyName="PropertyValue"
DateTimeProperty=DateTime(2010,10,1,12,30)

This is mainly used for DateTime objects and support for more types will be added in the future, as necessary.
Value Read the entire contents of a file into a property.

The command attempts to create objects of the proper type but if this is an issue, it may be necessary to use the formats that include property type.

Special Property Values

The following table liss special property names. If necessary, use .. in property values for file and folder paths to navigate to other parent levels, for example:

root_folder = PARENT_FOLDER
root_parent_folder = ${root_folder}/..

Special Property Values

Value                                  Description
PARENT_FOLDER The value will be set to the folder in which the property file exists, which is useful for creating portable configuration files.
PARENT_PARENT_FOLDER The value will be set to the parent of the folder in which the property file exists, which is useful for creating portable configuration files.

Command Editor

The command is available in the following TSTool menu:

  • Commands / General - Running and Properties

The following dialog is used to edit the command and illustrates the command syntax.

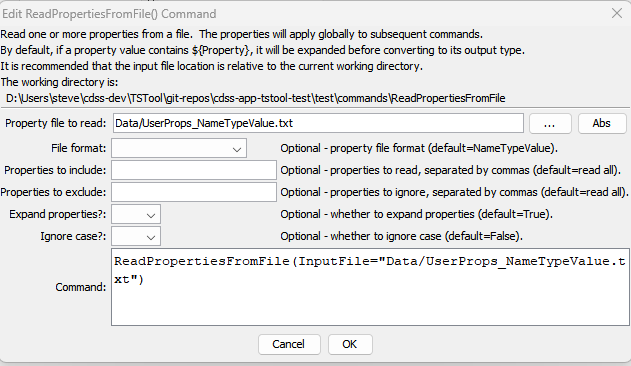

ReadPropertiesFromFile command editor

ReadPropertiesFromFile Command Editor (see full-size image)

Command Syntax

The command syntax is as follows:

ReadPropertiesFromFile(Parameter="Value",...)

Command Parameters

Parameter                           Description Default
InputFile
required		 The property file to read, as an absolute path or relative to the command file. Can be specified using ${Property}. None – must be specified.
FileFormat Format of the properties file (see descriptions in the above Property File Formats table):
  • INI
  • NameValue
  • NameTypeValue
  • NameTypeValuePython
  • Value
 NameValue
IncludeProperties
(IncludeProperty prior to TSTool 14.8.0)		 The names of properties to read, separated by commas. Can be specified using ${Property}. Use * as a wildcard. If not specified, all properties will be read.
ExcludeProperties The names of properties to ignore, separated by commas. The exclusions are considered after IncludeProperties is considered. Can be specified using ${Property}. Use * as a wildcard. If not specified, all properties indicated by IncludeProperties will be read.
IgnoreCase If True, ignore upper/lower case when comparing property names for IncludeProperties and ExcludeProperties. If False, the property names much match exactly. False
ExpandProperties Indicate whether string property values read from the file that contain ${Property} are expanded (True) or not (False). If FileFormat=INI, properties within the section are matched (without the Section. prefix) and then processor properties are matched (INI properties from other sections must use Section. prefix in the property name when referenced). Properties must be defined in an order that allows the expansion to occur. True

Examples

See the automated tests.

Troubleshooting

See the main TSTool Troubleshooting documentation.
